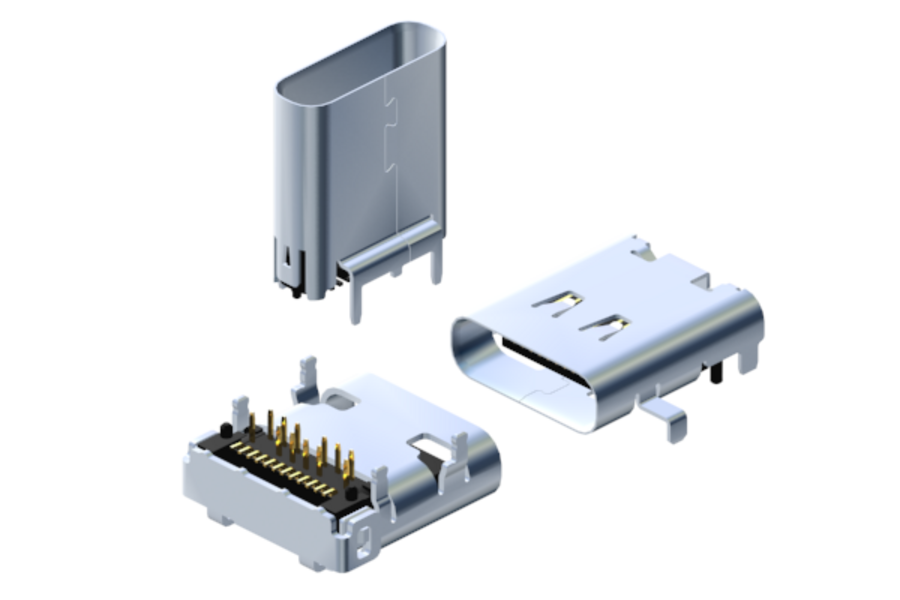

USB 3.1 Connector Type C Single port 90° SMT-THR Hybrid Type

USB 3.1 Connector Type C Single port 90° right angle SMT/THR Hybrid Type. The USB 3.1 connectors from E-tec meet the USB 3.1 Type-C requirements at 10 GBit/s and are smaller, thinner and have a lighter design. Gold / Gold Plating

View technical datas

Part Number

UNS-B24-SRCC130-58/R

Related documents

USB Technical Drawing

Keywords : USB 3.1 Connector Type C Single port 90° right angle SMT/THR Hybrid Type. The USB 3.1 connectors from E-tec meet the USB 3.1 Type-C requirements at 10 GBit/s and are smaller, thinner and have a lighter design.
