ZIF SMT FPC-FFC Type vertical

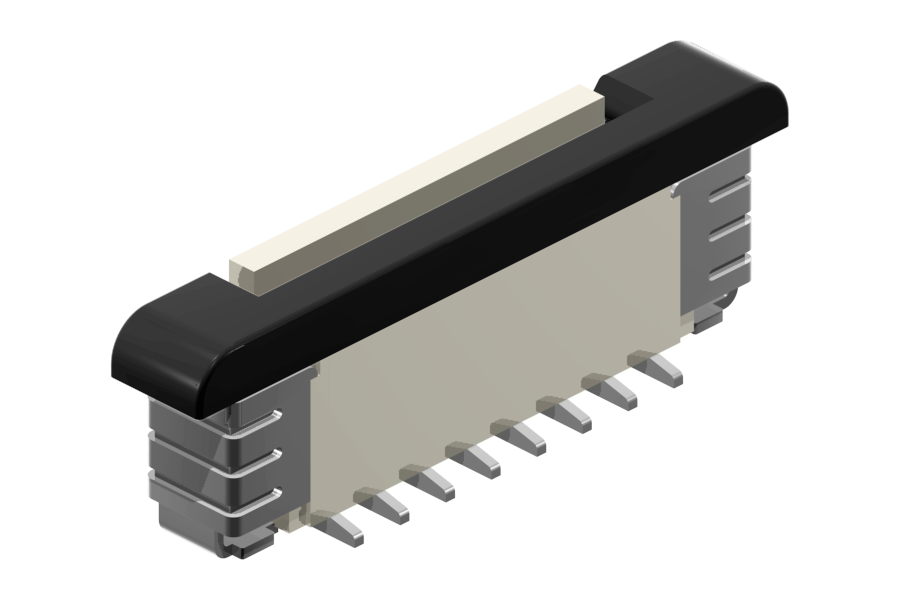

0.50mm pitch |
|
|
FCZ - xxx - V050 - 99/RP FPC/FFC CONNECTORS - ZIF FPC/FFC 0.50mm pitch, SMT vertical soldering technology. With the ZIF (Zero Insertion Force) connector is no need to apply much force to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this manipulation is extremely low. You can choose between "upper" or "lower" contact type. |
0.50mm pitch |
|
|
FCZ - xxx - VC5x - 99/RT FPC/FFC CONNECTORS - ZIF FPC/FFC 0.50mm pitch, SMT vertical soldering technology. With the ZIF (Zero Insertion Force) connector is no need to apply much force to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this manipulation is extremely low. You can choose between "upper" or "lower" contact type. |
1.00mm pitch |
|
|
FCZ - xxx - VZ100 - 99 / XX FPC/FFC CONNECTORS - ZIF FPC/FFC 1.00mm pitch, SMT vertical soldering technology. With the ZIF (Zero Insertion Force) connector is no need to apply much force to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this manipulation is extremely low. You can choose between "upper" or "lower" contact type. |
